We have dedicated team of experts for Testing & Commissioning services of all types of Protection Relays, Control & Relay Panels, Switchgear Panels, Transformers, Motors and Sub-stations up to 220KV.

The testing of protection equipment may be divided into four stages :

- Type tests

- Routine factory production tests

- Commissioning tests

- Periodic maintenance tests

Awesome Image

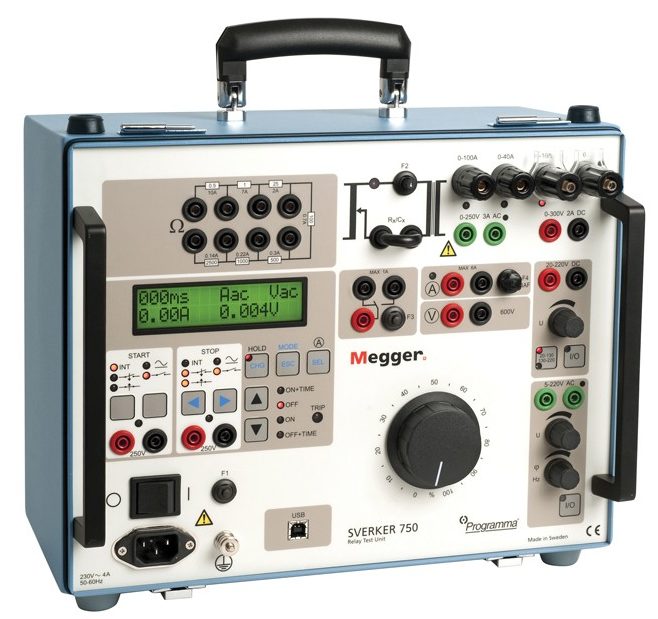

  • The Megger (Programma) SVERKER 750 Protection Relay Test Kit is used for single phase relay testing. The SVERKER 750 Protection Relay Test Kit features a powerful measurement section which displays(in addition to time, voltage and current) Z, R, X, S, P, Q, phase angle and cos f.

21 - Impedance

24 - Volts/Hz

25 - Synchronizing

27 - Under Voltage

32 - Directional Power Element

46 - Negative Sequence Current

40 - Loss of Excitation

50 - Instantaneous Overcurrent (N for neutral, G for ground current)

51 - Inverse Time Overcurrent (N for neutral, G from ground current)

59 - Over Voltage

62 - Timer

64 - Ground Fault (64F = Field Ground, 64G = Generator Ground)

67 - Directional Over Current (typically controls a 50/51 element

81 - Under/Over Frequency

86 - Lockout Relay / Trip Circuit Supervision

87 - Current Differential (87L=transmission line diff; 87T=transformer diff; 87G=generator diff)

Magnetizing current

Magnetic balance

Vector group

IR/PI

Ratio

Winding resistance

Manual ‘ON’ and ‘OFF’ operation

Contact Resistance

Insulation resistance

Opening time

Closing time

Close to open time( HT Breaker)

Vacuum Bottle Level Check( HV Test)

Insulation Resistance Test

Bus bar Resistance (With Joint)

Bus bar High Voltage

IR/PI test

Withstand test

Tandelta test
