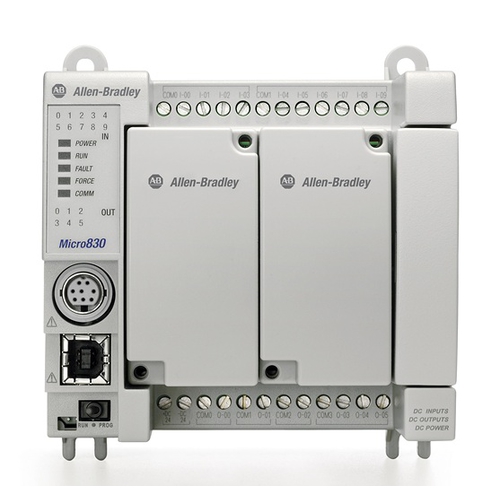

Micro830 Controller, 14-24V DC/V AC Input, 10-24V DC Sink Output Controller

  • Description
  • Digital Input Type - 24V DC/V AC
  • Number of Input Points available - 14
  • Digital Output type - 24V DC Sink
  • Number of Output Points Available - 10
  • Pulse Train Output Support - 2
  • High Speed Counter Support - 4
  • Max number of Plug-in Slots Available - 3
  • Special Features - 4 HSC, 2 PTO, 3 Plug-In Slots
  • Number Of Channels - 14 I/P, 10 O/P
  • Input Signal - 24 VDC/AC
  • Output Signal - 24V DC Sink
  • Memory - 20KB
  • Width - 145mm
  • Micro 830 - M830 System with Base unit and Plug-in options
  • Note - Available in Base unit for 24V DC/V AC Input Type, however the High Speed Counter Support option is available as Plug-in module
  • Sub Brand - Micro800
  • Type - Controller
  • Standard - c-UL-us CL1DIV2, CE, C-Tick, KCC
  • Communication - Modbus, ASCII, CIP
  • Enclosure - IP20
  • Display - No Display
  • Interface - USB Port, Non-Isolated RS232/485 Serial Port
  • Mounting - DIN Rail, Panel Mount
  • Height - 90mm
  • Depth - 80mm
  • Operating Temperature :- -20...65 °C (-4...149 °F)
